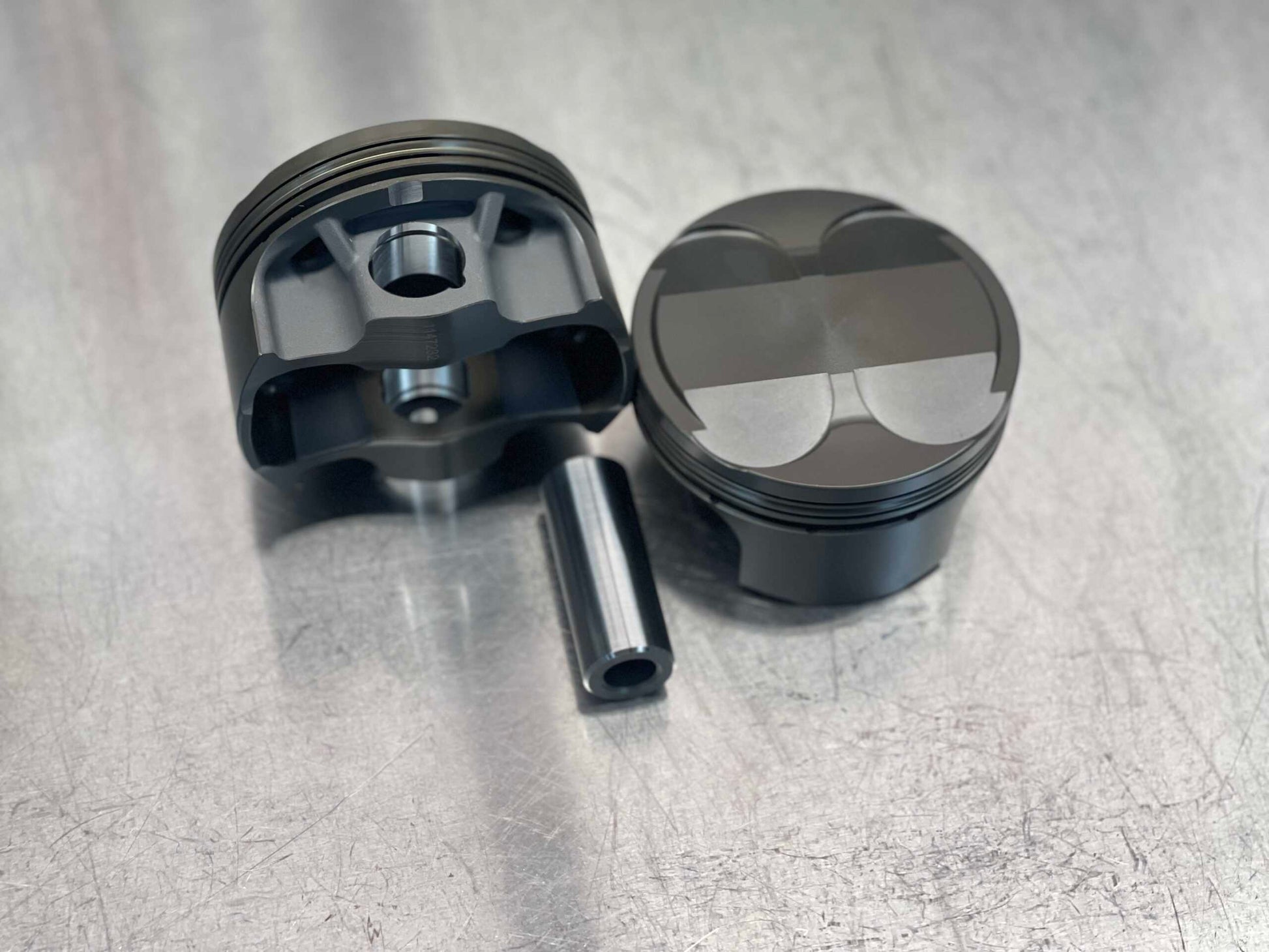

RPG Coyote Pistons for PTWA Blocks Only

RPG is proud to release an exclusive collaboration with JE Pistons — a line of dedicated forged pistons engineered specifically for PTWA (Plasma Transferred Wire Arc) cylinder wall technology used in Gen 3 and newer 5.0L Coyote and 5.2L GT350 / GT500 engines.

Unlike standard 2618 forged pistons that can cause premature wear or clearance issues in PTWA blocks, these RPG × JE pistons are designed from a clean-sheet proprietary alloy forging, paired with advanced friction-reduction coatings and premium ring packs. The result is the most advanced piston solution available for modern Coyote and Predator engines.

Key Features

• ✅ Engineered exclusively for PTWA blocks – perfect fit for Gen 3+ 5.0L Coyote and 5.2L GT350 / GT500 Predator engines

• ✅ Proprietary JE alloy forging – optimized for PTWA compatibility and extreme durability

• ✅ 1500 HP rated – built to withstand the most demanding boost and RPM conditions

• ✅ Low-friction full-coating package for reduced heat and skirt wear

• ✅ Pro Seal Ring Set included:

  • Gas-nitride steel 1.0 mm top ring

  • 1.2 mm Napier second ring

  • 2.8 mm oil ring

• ✅ HD wrist pins included: 0.866″ × 2.250″ × 0.180″ wall thickness

• ✅ Available in multiple compression ratios and standard Gen 3/4 5.0L & 5.2L bore sizes

Why These Pistons Matter

Most off-the-shelf forged pistons are not compatible with PTWA cylinder technology due to differences in expansion rate, surface interaction, and ring-seal dynamics. RPG and JE Pistons developed this piston set from the ground up to solve those issues — ensuring perfect wall conformity, maximum sealing efficiency, and long-term durability even under high boost or racing conditions.

⚠️ Important Installation Note

Before installation, verify your engine bore size and inspect for cylinder taper. Some Ford Performance Gen 3 5.0L and 5.2L blocks have exhibited excessive cylinder taper, which can cause premature wear or failure. Always measure and hone as necessary prior to piston installation.
