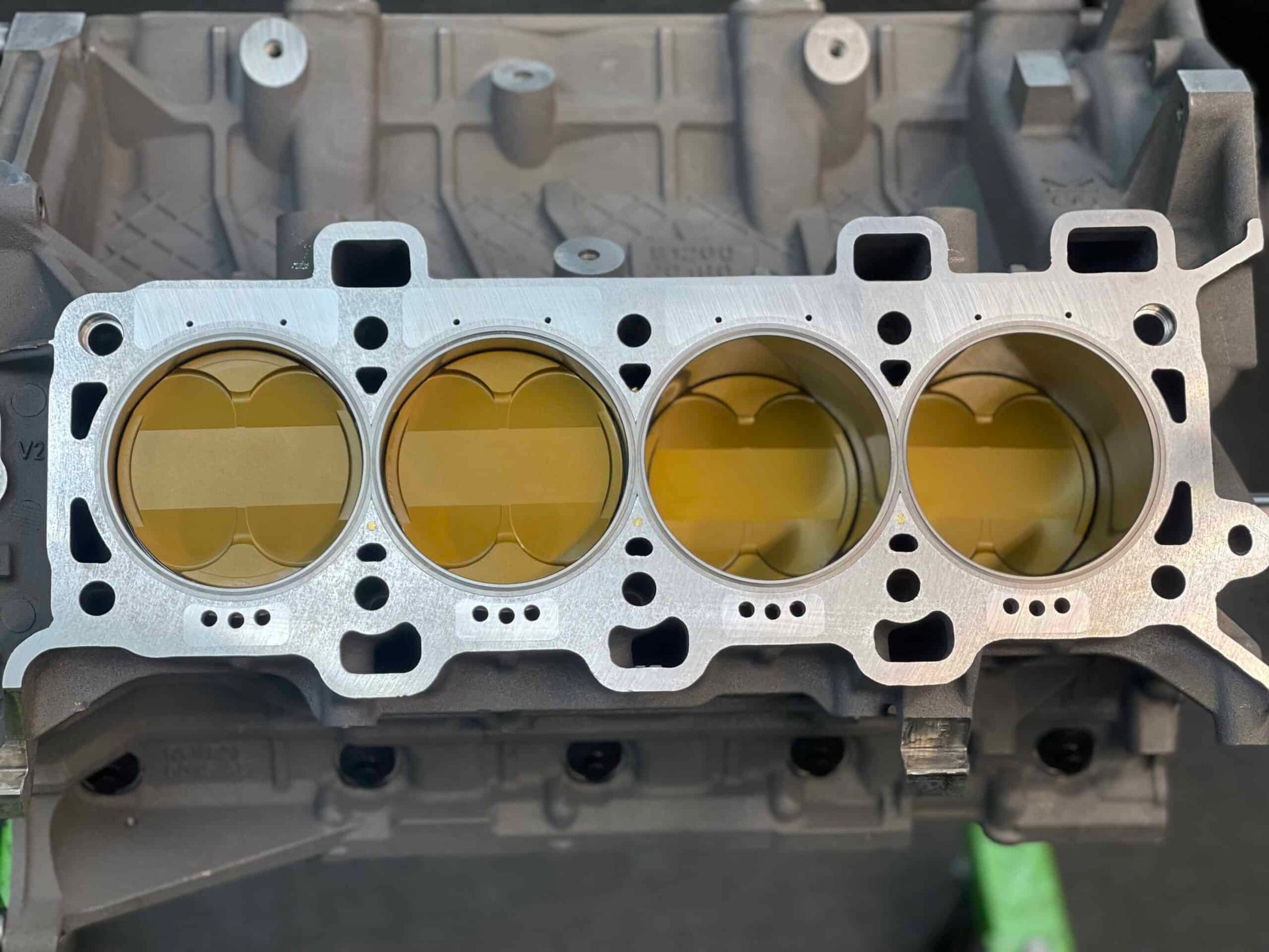

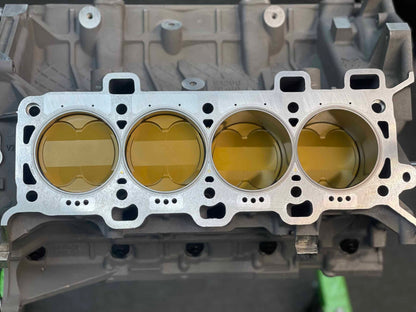

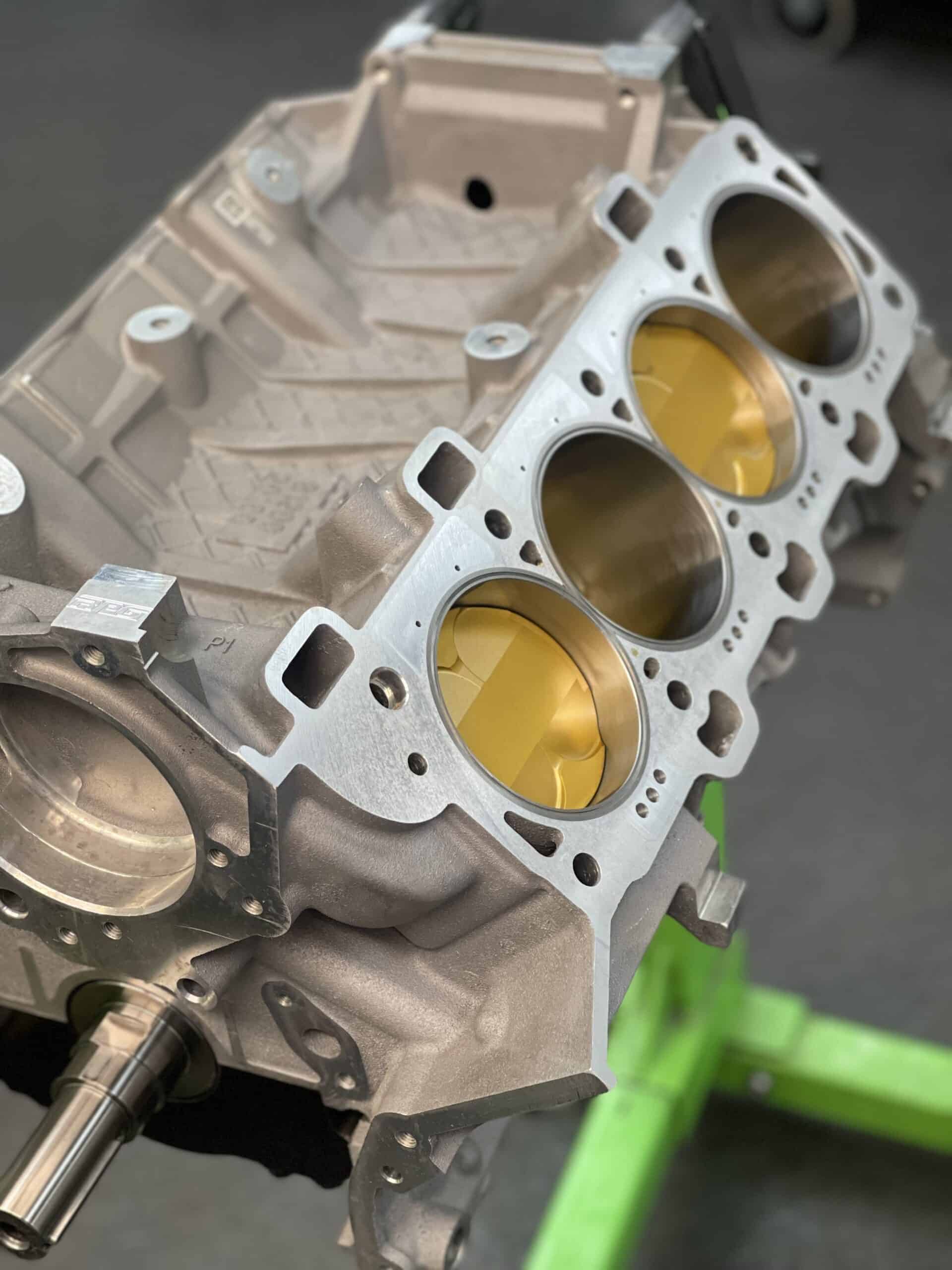

RPG 5.2L Coyote Short Block – Level 5 Steel Rod / Billet Crank (2500–3000WHP Rated)

The RPG Level 5 5.2L Coyote Short Block represents the pinnacle of RPG’s engine development — engineered for extreme horsepower builds that demand absolute strength and precision. Designed for high-boost competition engines capable of 2500–3000 wheel horsepower, this short block combines billet construction, race-level machining, and premium components for unmatched reliability and performance.

Short Block Specifications

• Block: New Ford Gen 3 5.2L Predator aluminum block featuring RPG full billet deck supports — no welding, ensuring a true structural reinforcement design

• Sleeves: Darton Sleeved and O-Ringed (optional machining for receiver grooves available)

• Main Caps: RPG Billet Steel main caps for maximum rigidity and bearing stability

• Crankshaft: Winberg Billet Steel crankshaft – 3.660″ stroke, designed for ultra-high-RPM stability and strength

• Pistons: RPG Spec Ultra Series-X forged pistons and pins – 11:1 compression ratio

• Connecting Rods: RPG Spec Oliver billet steel I-beam rods or Manley 300M rods with ARP L19 bolts

• Piston Rings: Total Seal piston ring set

• Hardware: ARP main studs and side bolts

• Machining and Assembly: Fully CNC-machined for all critical clearances; rotating assembly balanced and assembled to race-level specifications

• Horsepower Rating: 2500–3000 wheel horsepower

• Shipping: Flat freight charge of $250.00 within the 48 contiguous United States

Application & Intended Use

This Level 5 short block is designed for serious track racers and drag-and-drive competitors who require extreme power handling, precision, and endurance.
Built for customers running high-boost forced induction systems, this configuration provides maximum structural integrity and long-term reliability even under repeated heavy load.

Note: Aluminum connecting rod versions are intended for dedicated race applications and require routine service intervals for connecting rod inspection and replacement.

Why Choose RPG

The RPG Level 5 Predator short block is built from the ground up to handle record-setting horsepower. From the billet deck support system and Darton sleeves to the Winberg billet crankshaft and Ultra Series-X internals, every detail is engineered for durability, balance, and consistency. RPG’s precision machining and assembly ensure each engine delivers elite-level performance on both the track and street.
